Cold Heading Wire

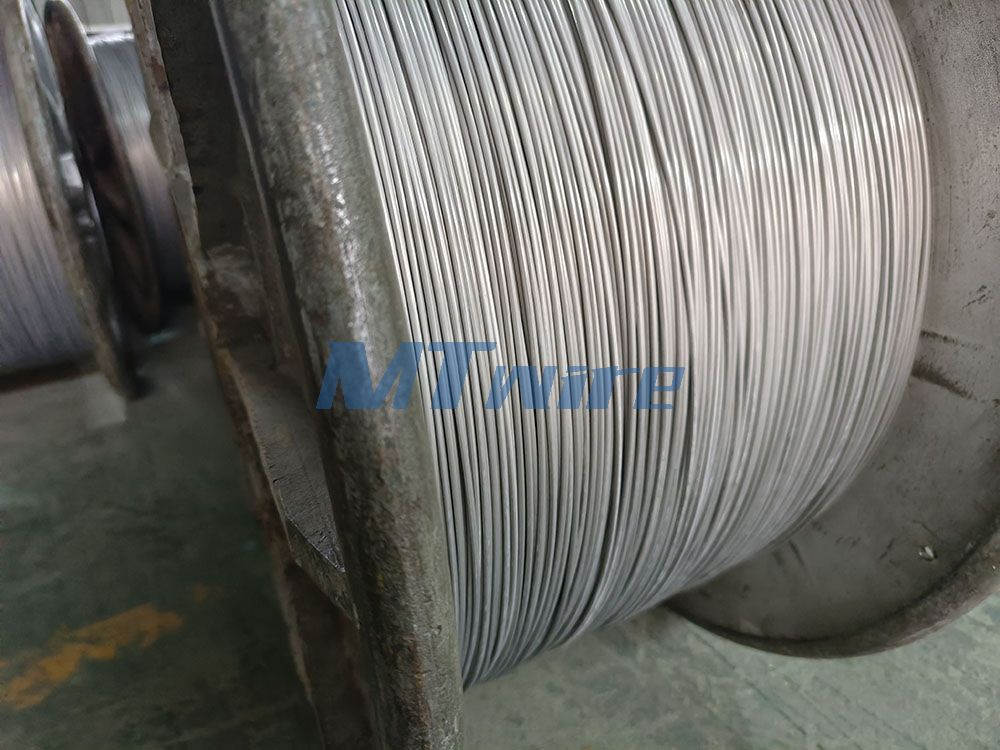

ASTM A510 1020 Cold Heading Wire High Hardness for Push Plates

ASTM A510 1020 Cold Heading Wire High Hardness for Push Plates

ASTM A510 1020 Cold Heading Wire High Hardness for Push Plates


Product name: Carbon Steel Wire
Material: ASTM 1566, 9260, 6150, 1070, 1035, 1045,1018, 1020, 1022, 1023, SAE9254,
              55SiCrA, SWRH72A, SWRH72B, SCM435, SCM432...
Use: Clutch spring, suspension spring, valve spring, music wire,etc.
Standard: ASTMA229/A230/A401/A877/A580/A510/A29, GTB/18983-2017, EN10270-2, DIN17223-2, JSG3560/3561, etc.
Diameter: φ0.15mm -φ16mm
Product cross section: Special-shaped steel bars with circular and various non-circular sections


Cold heading is the process of forging metal at temperatures close to room temperature without any additional heat. The hardness, yield strength and tensile strength of the metal can be improved by cold working.

Cold heading wire is mainly used for various kinds of fasteners manufacturing, for example: precision screws, bolts and nuts etc. And also in manufacturing rivet, nail, stable, pins for construction and automotive.

Grade
Chemical Composition
CSiMnCrVBPSother
ML20MnTiB0.19-0.24≤0.301.30-1.60

0.0005-0.0035≤0.030≤0.030Ti:0.04-0.10
41350.33-0.380.15-0.350.60-0.900.90-1.20

≤0.030≤0.030Mo:0.15-0.30
SCM4320.32-0.400.17-0.370.40-0.700.80-1:10

≤0.035≤0.035Mo:0.15-0.25
ML20MnVB0.19~0.24≤0.301.20~1.60
0.07-0.120.0005-0.0035≤0.030≤0.030
10180.17-0.240.17-0.370.70-1.00≤0.25

≤0.035≤0.035Cu: ≤0.25;
Ni: ≤0.25
10200.18-0.230.10-0.400.30-0.60


≤0.040≤0.050
10220.17-0.240.17-0.370.70-1.00≤0.25

≤0.035≤0.035Cu: ≤0.25;
Ni: ≤0.25
10230.17-0.230.17-0.370.35-0.65≤0.25

≤0.035≤0.035Cu: ≤0.25;
Ni: ≤0.30

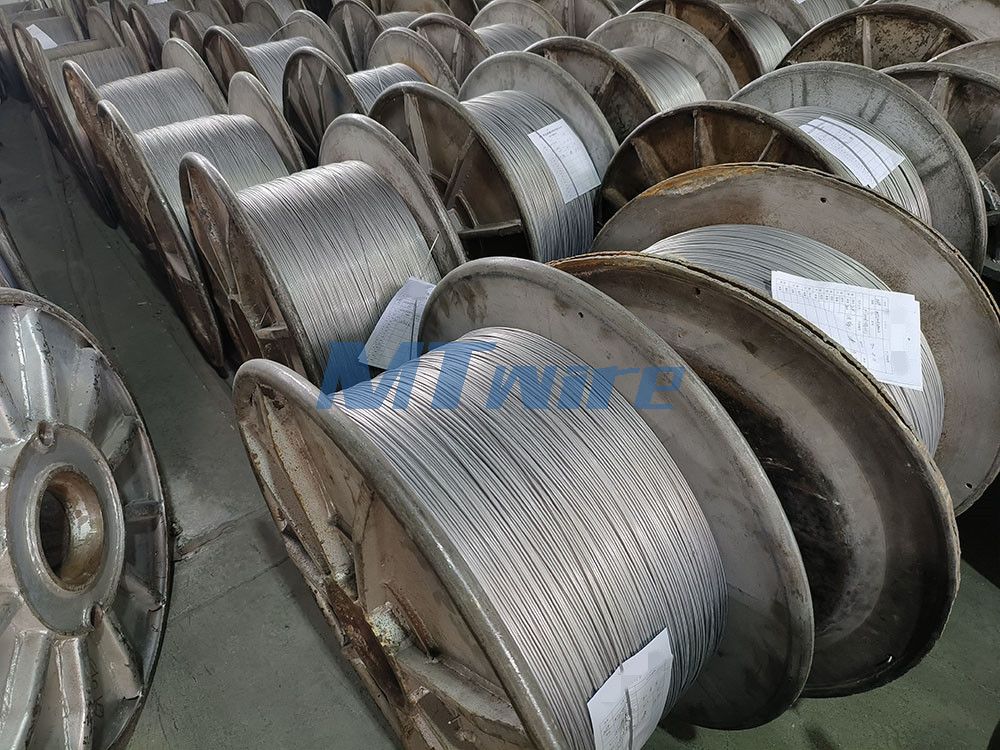

stainless steel wire (21).jpg


MTSCO is a professional supplier of steel wire with complete production technology and rich management experience. We produce spring wire, electrolytic polished wire, fine wire, wire for netting, hose wire, welding wire, cold heading, locking wire, and other products. Our main materials are stainless steel and alloy steel, and the raw materials we use are from the biggest and most well-known steel mills in China, we can supply wire in sizes ranging from 0.15 mm to 16 mm in diameter. Our factory is well-equipped and our products conform to ASTM, DIN, GTB, JIS, JSG, and other international standards. We have experienced foreign trade staff with high-quality service and can produce high-quality products according to customers' requirements.


Quality Control

Production process of stainless steel wire

Why Choose MTSCO?

Integration of industry and trade

Provide you with cost-effective products and professional services.

One stop procurement of stainless steel wire products

Leave the complexity to Mtsco and the simplicity to you.

After the test of time for 17 years

Whether the products, services, capital and strength, Mtsco is your optimum partner.
