Stainless Steel Spring Wire
High Quality Spring Wire with Bright Surface B-SPR for 316/316L/316LN
MTSCO is a professional supplier of steel wire with complete production technology and rich management experience. We produce spring wire, electrolytic polished wire, fine wire, wire for netting, hose wire, welding wire, cold heading, locking wire, and other products. Our main materials are stainless steel and alloy steel, and the raw materials we use are from the biggest and most well-known steel mills in China, we can supply wire in sizes ranging from 0.15 mm to 16 mm in diameter.

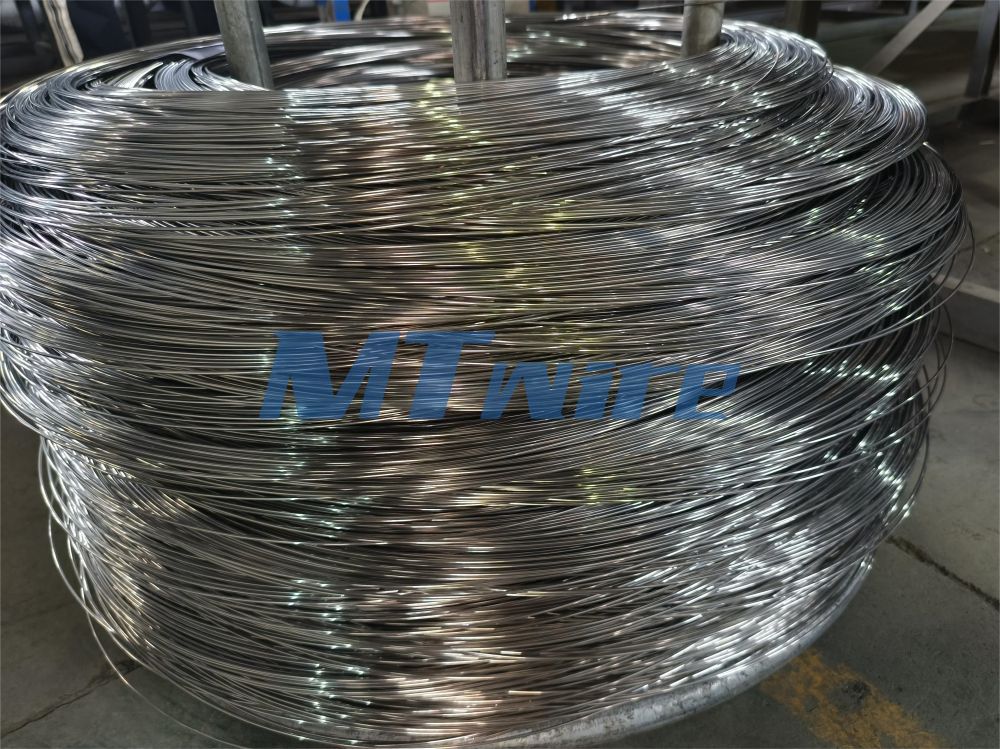

High Quality Spring Wire with Bright Surface B-SPR Stainless Steel Wire for 316/316L/316LN
Material | Stainless Steel Wire |
Grade | 300series (301, 302, 304, 304L, 304H, 304N, 304ES, 316L, 321...) 130M, 200CU, 201CU, 202, , 410, 420, 430,etc |
Standard | ASTM A580, JIS G4309, EN 10088-3, GB/T4240, etc |
Size | φ0.15mm-φ16mm; or according to customers' requests |
Surface | Bright, matte ,downy, electrolysis bright ,cloudy ,plain ,black,etc |
Condition | Annealed and Soft, 1/2 hard, 3/4 hard and full hard |
Type | Spring Wire (B-SPR/D-SPR) |
Packing | Woven bag, core, wooden reel, etc |
Advantages of stainless steel wire:
Steel Grade | DIN | Chemical composition | ||||||||
C | Si | Mn | P | S | Ni | Cr | Mo | Other composition | ||
316 | WNr1.4436 | ≤0.08 | ≤1.0 | ≤2.0 | ≤ 0.045 | ≤ 0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |
316(R0PE) | 0.053 | 0.4 | 1.5 | 0.035 | 0.01 | 10.8 | 17 | 2.2 | ||
316C | ≤0.08 | 50 | ≤2.0 | ≤ 0.040 | ≤ 0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | Cu:≤2.8-3.8 | |
316LA | WNr1.4404 | ≤0.03 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | N:≤0.10 |
316LJ | WNr1.4435 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.030 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | N:≤0.10 |
316N | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | N:0.10-0.16 | |
316NB | 0.03-0.05 | 0.4-0.7 | 1.4-1.6 | ≤ 0.040 | 0.02-0.03 | 12.0-13.0 | 17.5-18.0 | 2.0-3.0 | Ti:0.005-0.05,Nb:0.004-0.06 | |
316F | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.010 | 10.0~14.0 | 16.0-18.0 | 2.0~3.0 | ||
316LF | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.010 | 10.0-14.0 | 16.0-18.0 | 2.0~3.0 | ||
316TI | WNM.4571 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | Ti:≤0.7 |
316UL | ≤0.02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.030 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | Cu:≤0.6,N:≤0.08 | |
316/316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.030 | 10.0-14.0 | 16.0~18.0 | 2.0-3.0 | N:≤0.10 |
Application for 316 stainless steel wire:
Steel Grade | Mecnanism value | |||
Y.S | T.S | EL. | HRB | |
316 | 240 | 580 | 64 | 71 |
316(R0PE) | 227 | 551 | 58 | 74 |
316C | 250 | 610 | 55 | 87 |
316LA | 549 | 62 | ||
316LJ | 213 | 560 | 55 | 79 |
316N | 212 | 560 | 55 | |
316NB | 220 | 540 | 70 | |
316F | 230 | 570 | 58 | 70 |
316LF | 225 | 565 | 46 | 66 |
316TI | 214 | 565 | 65 | 79 |
316UL | 212 | 539 | 58 | |
316/316L | 227 | 551 | 66 | 72 |
Quality Control
Why Choose MTSCO?
Factory Complex
Provide you with cost-effective products and professional services.
One stop procurement of wire products
Leave the complexity to Mtsco and the simplicity to you.
After the test of time for 18 years
Whether the products, services, capital and strength, Mtsco is your optimum partner.
