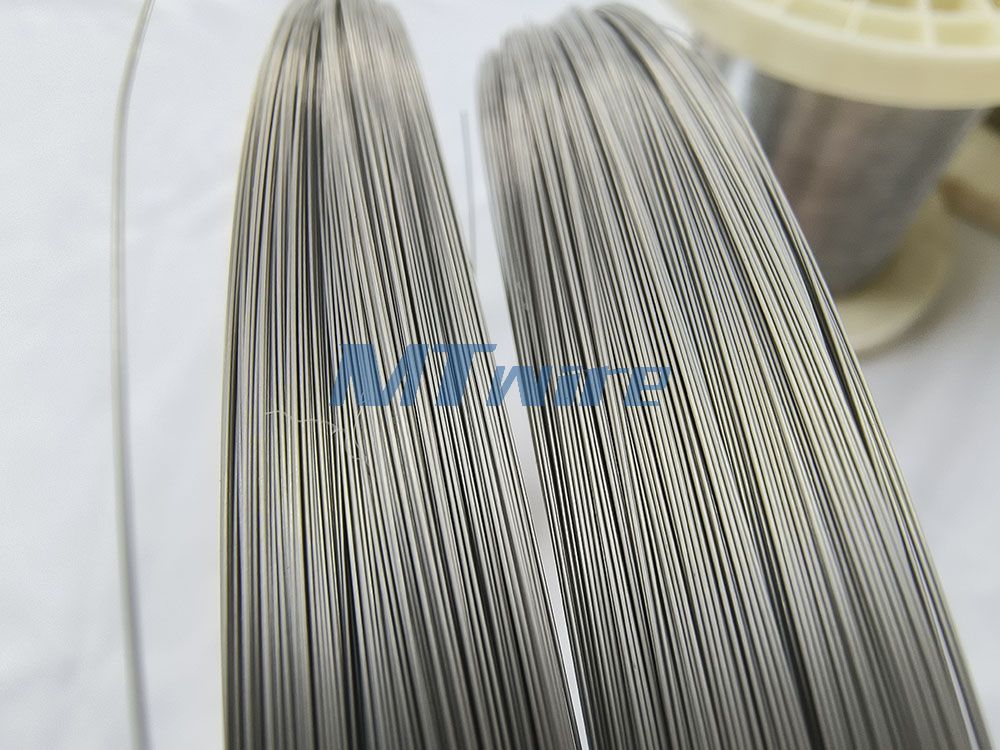

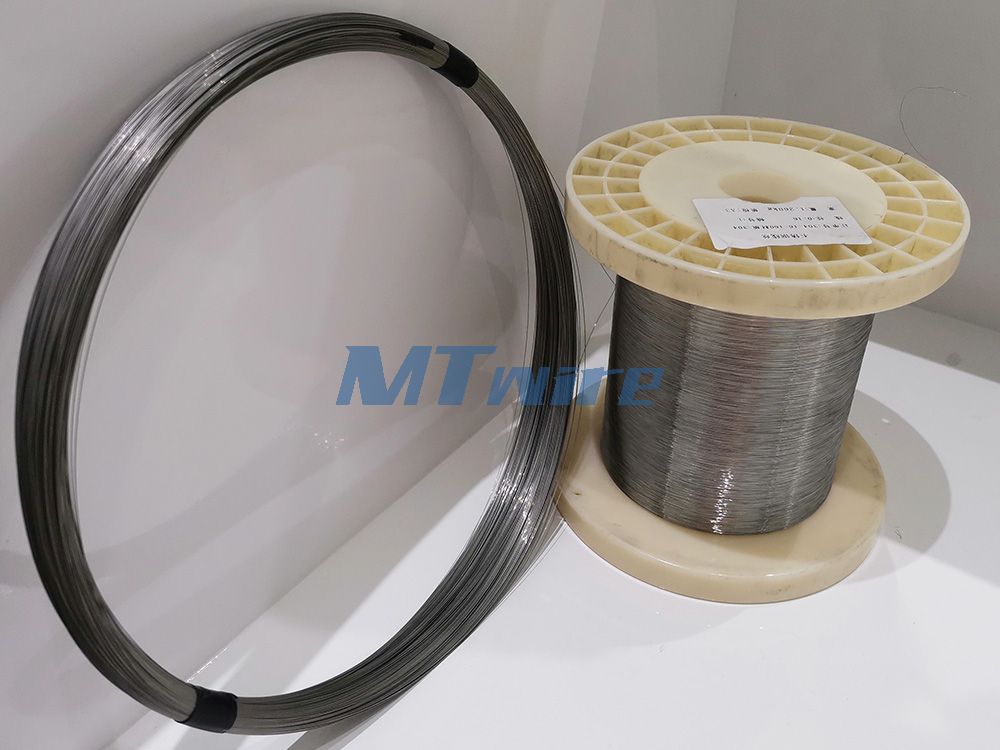

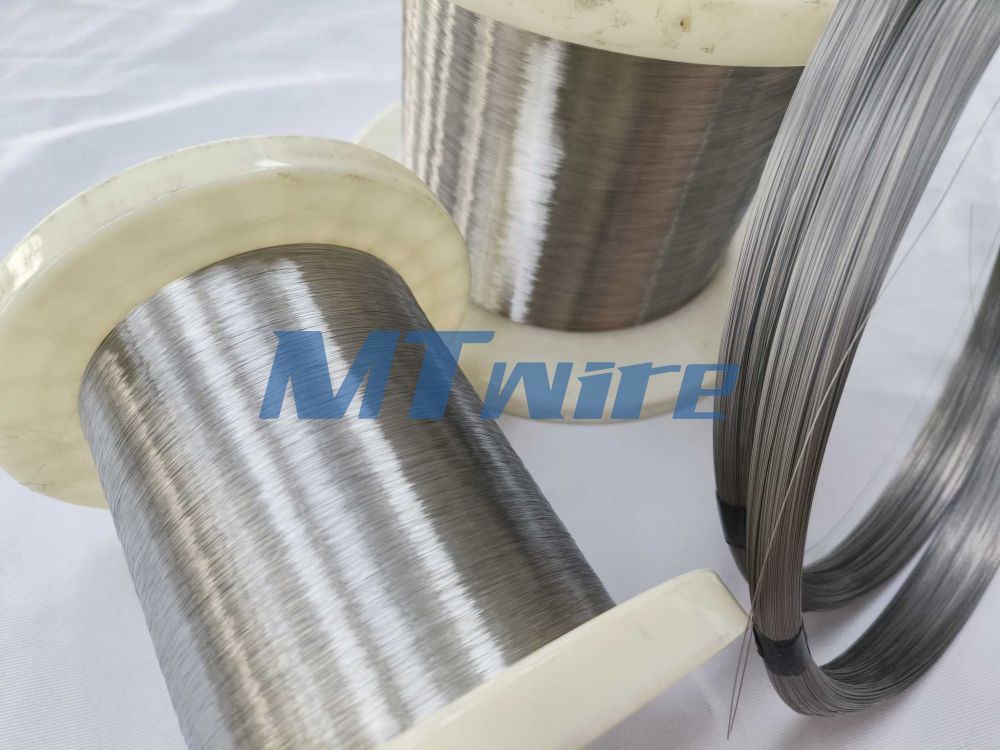

ASTM F138 Stainless Steel 316LVM Medical Wire Flexible Wire
316LVM is a type of stainless steel that undergoes vacuum arc remelting to enhance its corrosion resistance and produce a microstructure free of ferrite. Compared to standard 316L, this version of 316 stainless steel has a higher nickel content and lower levels of carbon, molybdenum, and chromium. It is commonly dual-certified and known as 316LS stainless steel. Additionally, 316LVM displays exceptional resistance to pitting, crevice corrosion, and physiological environments. These properties make it an ideal choice for use in medical applications and high-precision electronic devices.
ASTM F138 Stainless Steel 316LVM Medical Wire Flexible Wire
| Material | Stainless Steel Medical Wire |
| Grade | 302, 304V, 304LV, 316LVM, Custom 455, Biodur108 |
| Standard | ASTM A313, A313M, A276, F899, A564/A564M, F2229, F138ISO 5832-1 |
| Size | φ0.15mm-φ16mm; Or According To Customers' Requests |
| Type | Round, flat, core, braiding, staple |
| Condition | Annealed and Soft, 1/2 hard, 3/4 hard and full hard |
| Packing | Woven bag, core, wooden reel, etc |
What is Stainless Steel 316LVM?
316LVM is a type of stainless steel that undergoes vacuum arc remelting to enhance its corrosion resistance and produce a microstructure free of ferrite. Compared to standard 316L, this version of 316 stainless steel has a higher nickel content and lower levels of carbon, molybdenum, and chromium. It is commonly dual-certified and known as 316LS stainless steel. Additionally, 316LVM displays exceptional resistance to pitting, crevice corrosion, and physiological environments. These properties make it an ideal choice for use in medical applications and high-precision electronic devices.
| Steel Grade | DIN | Chemical composition | ||||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | Other composition | ||
| 304N | ≤0.08 | ≤ 0.075 | ≤2.0 | ≤0.045 | ≤0.03 | 8.0-10.5 | 18.0-20.0 | N:0.1-0.16 | ||
| 304N1E | WNr1.4306 | ≤0.08 | ≤1.0 | ≤2.5 | ≤0.045 | ≤0.03 | 7.0-10.5 | 18.0-20.0 | N:0.1-0.25 | |
| 316N | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | N:0.10-0.16 | |
| 316NB | 0.03-0.05 | 0.4-0.7 | 1.4-1.6 | ≤ 0.040 | 0.02-0.03 | 12.0-13.0 | 17.5-18.0 | 2.0-3.0 | Ti:0.005-0.05,Nb:0.004-0.06 | |
| 316LVM | ≤0.03 | ≤0.75 | ≤2.0 | ≤0.03 | ≤0.010 | 13.0-15.0 | 17.0-19.0 | 2.25-3.00 | N:≤0.10 | |
Quality control of raw materials
Slight changes in chemical composition and mechanical properties of raw materials will have a significant impact on the properties of finished steel wire. Therefore, the quality of base bar is one of the key factors to determine the quality of finished steel wire. We will strictly test the raw materials. Only raw materials that pass the test and meet the standards can go to the next process.
Quality Control
Raw Materials: MTC checking(PMI), Tensile strength test, Surface/Dimension inspection
Prodcution: Specially assigned person shall follow up and check according to the process flow card, and finally keep the copy
Before shipment: Mechanical properties test, Surface/Dimension inspection, or according to customers’ requirement
|  |
Why you choose MT Wire?
We have 7 advanced electric furnace production lines, and the rolling is up and down synchronization
Strict quality inspection, four quality inspections from online to offline
Mtsco is a professional steel wire supplier with complete production technology and rich management experience. We have 17 years of production experience, our annual productivity is more than 60000 tons. Mtsco is committed to the professional production of spring wire for automobile and machinery. In addition, we can provide electro polishing quality wire, mesh wire, annealed wire, welding wire, cold heading, locking wire, etc. The main materials are stainless steel and alloy steel. The raw materials used are from the largest well-known steel mills in China. We can provide wire products with sizes and diameters ranging from 0.15 mm to 16 mm, and strictly comply with ASTM, DIN, GTB, JIS, JSG and other international standards.
